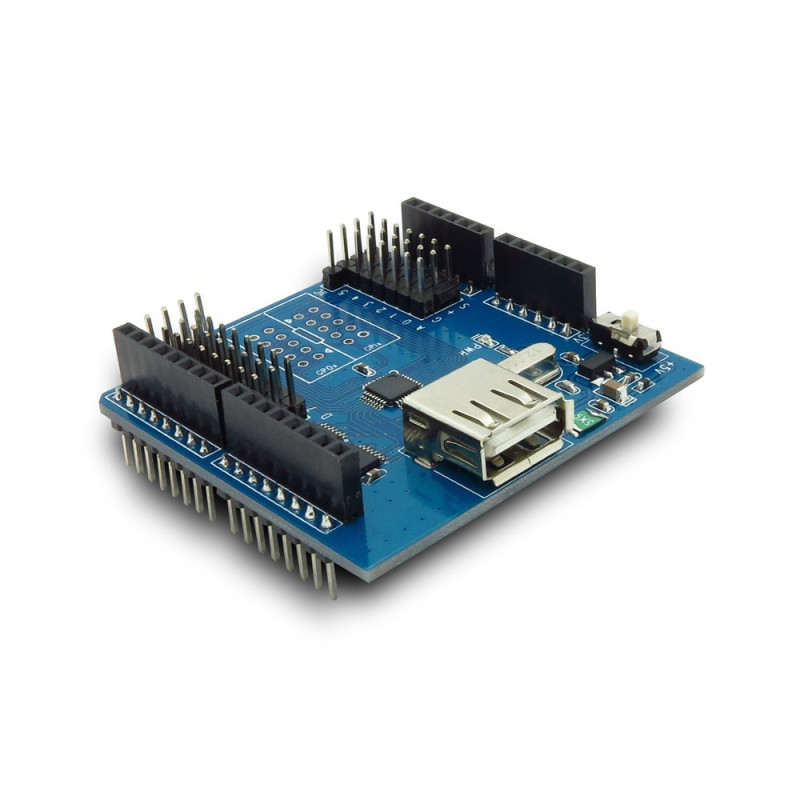

USB Host Shield (Arduino Compatible)
5,300.00DA
Fast delivery
Ready within 24-48 hours
Secure payment
Protected checkout
Easy returns
14-day return window
24/7 support
We are here to help
Store settings & services
- Pickup available in store
- Shipping calculated at checkout
- Warranty included
- Verified by Smartcart
Description
The USB Host Shield contains all of the digital logic and analog circuitry necessary to implement a full-speed USB peripheral/host controller with your Arduino. This shield adds USB Host capabilities to the popular Arduino platform. C Software support for new devices is constantly added; at the moment, code for USB keyboard and PS3 controller are ready with Bluetooth and digital cameras in the works. This means you could use your Arduino to interface with and control any USB slave device - thumbdrives, digital cameras, bluetooth dongles, and much more!
Features
- USB 2.0 Full Speed compatible
- 3.3/5V operation level compatible
- All GPIOx pins break-out
- USB Host 5V/500mA supply for USB protocol
Hardware
|
Pin |
Description |
|
D0 |
UART_Rx |
|
D1 |
UART_Tx |
|
D2 |
- |
|
D3 |
- |
|
D4 |
- |
|
D5 |
- |
|
D6 |
- |
|
D7 |
- |
|
D8 |
- |
|
D9 |
- |
|
D10 |
SPI-CSn |
|
D11 |
SPI-MOSI |
|
D12 |
SPI-MISO |
|
D13 |
SPI-SCK |
|
A0 |
AD0 |
|
A1 |
AD1 |
|
A2 |
AD2 |
|
A3 |
AD3 |
|
A4 |
IIC_SCL |
|
A5 |
IIC_SDA |
