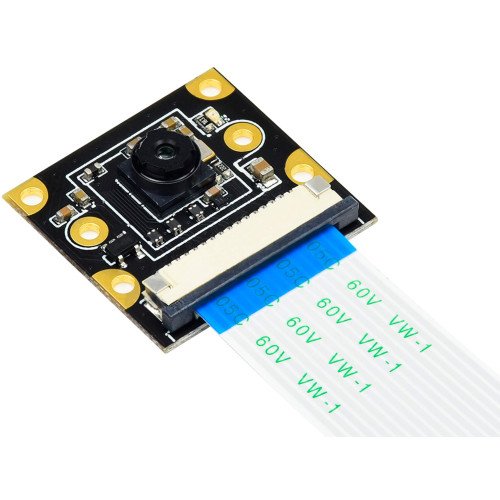

8MP IMX219-77 Camera Module for NVIDIA Jetson

Key Specifications

Sensor Details:

• Resolution: 8 Megapixel (3280 × 2464 pixels)

• Sensor Type: Sony IMX219 CMOS

• Sensor Size: 1/4 inch

• Pixel Size: 1.12 µm

Imaging Performance:

• Frame Rate: 30 fps at 1080p

• Dynamic Range: 71 dB

• Sensitivity: 1.1 V/lux-sec (at 550nm)

Connectivity:

• Interface: MIPI CSI-2 (2-lane)

• Connector: 22-pin 0.5mm pitch

• Cable Length: 15cm (included)

Optics:

• Mount: Standard M12

• Focal Length: 3.3mm (optional)

• Aperture: F/2.0

Compatibility

• Works With: NVIDIA Jetson Nano, Xavier NX, Orin

• Drivers: Included in JetPack SDK

• APIs: Supports GStreamer, OpenCV, Python

Typical Applications

• Smart surveillance systems

• Robotics and drones

• Industrial inspection

• Facial recognition

• Augmented reality

Key Advantages

✅ High-resolution imaging for AI applications
✅ Low power consumption (0.5W typical)
✅ Plug-and-play with Jetson boards
✅ Excellent price-to-performance ratio

Note: This camera is ideal for developers working on projects that require a balance between image quality and power efficiency, particularly for embedded vision systems and computer vision applications.
