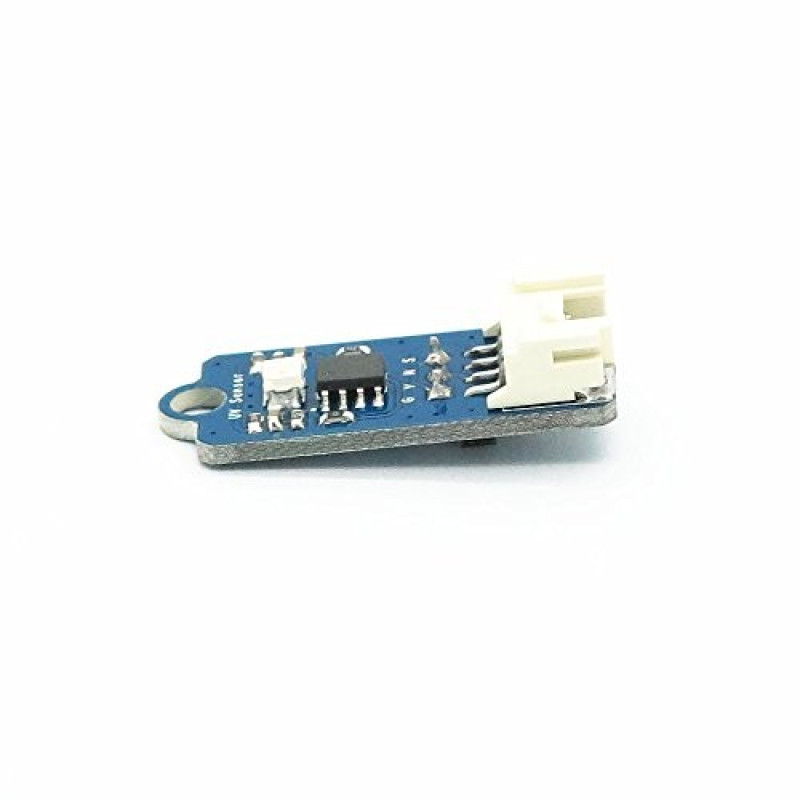

UV Ultraviolet Radiation Ray Detection Sensor Module

Description:
The UV Sensor is used for detecting the intensity of incident ultraviolet(UV) radiation. This form of electromagnetic radiation has shorter wavelengths than visible radiation. The UV Sensor is based on the sensor GUVA-S12D which has a wide spectral range of 200nm-400nm. The module outputs electrical signal which varies with the UV intensity, which gives your suggestion if it is a good idea to beach today.

PCB size: 33.0mm X 14.00mm X 1.6mm
Power supply:     3.3 or 5V DC
Compatible interfaces:     2.54 3-pin interface and 4-pin Grove interface


Parameter     Min.     Typical     Max.     Unit
Operating voltage     3.0     5     5.5     VDC
Current     -     0.3     -     mA
Output voltage     0     -     VCC     VDC
Response wavelength     200     -     370     nm

Demo:
 void setup()
 {
 Serial.begin(9600);
 }
 void loop()
 {
 int sensorValue;
 long  sum=0;
 for(int i=0;i<1024;i++)
 {
 sensorValue=analogRead(A0);
 sum=sensorValue+sum;
 delay(2);
 }
 sum = sum >> 10;
 Serial.print("The voltage value:");
 Serial.print(sum*4980.0/1023.0);
 Serial.println("mV");
 delay(20);
 Serial.print("\n");
 }
